Performance:
Low forward voltage drop
High current capability
High reliability
High surge current capability

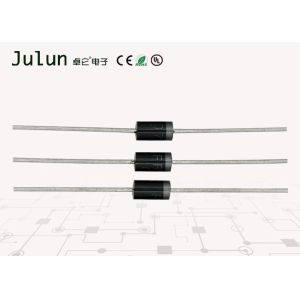

Case:Molded Plastic DO-15
Terminals: Axial leads solderable per MIL-STD-202,Method 208 guaranteed
Polarity: Color band dentes cathode end
Mounting Position: Any
Maximum Ratings and Electrical Characteristics
Rating at 25℃ ambient temperature unless otherwise specified
Single phase,half wave,60Hz,resistive or inductive load
For capacitive load derate current by 20%
| Type Number |
SYMBOL |
FR201 |
FR202 |
FR203 |
FR204 |
FR205 |
FR206 |
FR207 |
Unit |
| Maximum Recurrent Peak Reverse Voltage |
VRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum RMS Voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Average Rectified Output Current (Note 1) @TL=100 ℃ |
IF(AV) |
2.0 |
A |
Peak Forward Surge Current 8.3ms Single halfsine-wave superimposed on rated load (JEDEC
Method) |
IFSM |
60 |
A |
| I2t Rating for Fusing (t < 8.3ms) |
I²t |
14.94 |
A²s |
| Forward Voltage @IF=2.0A |
VFM |
1.3 |
V |
| Peak Reverse Current @T =25℃ |
IR |
5.0
100
|
uA |
| At Rated DC Blocking Voltage @T =100℃ |
| Maximum Reverse Recovery Time (Note 2) |
TRR |
150 |
250 |
500 |
nS |
| Typical Junction Capacitance (Note 3) |
Cj |
40 |
pF |
| Typical Thermal Resistance Junction to Ambient |
Rθja |
25 |
℃/W |
| Operating Temperature Range |
Tj |
-65 to + 125 |
℃ |
| Storage Temperature Range |
Tstg |
-65 to + 150 |
℃ |
Note:
1.Leads maintained at ambient temperature at a distance of 9.5mm from the case
2.Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
3.Measured at 1.0 MHz and Applied reverse Voltage of 4.0V D.C
